126Mpps SFP Gigabit Ethernet POE Switch S5720-28X-PWH-LI-AC

Name: 126Mpps SFP Gigabit Ethernet POE Switch S572028XPWHLIAC
Brand: huawei
Price: 1 USD

Buy cheap 126Mpps SFP Gigabit Ethernet POE Switch S5720-28X-PWH-LI-AC product

Brand Name : huawei

Model Number : S5720-28X-PWH-LI-AC

Place of Origin : USA

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per week

Delivery Time : 3~5 working days

Packaging Details : Original packing

Brand : huawei

Product name : S5720-28X-PWH-LI-AC

Device type : Huawei 24 Port POE Switch

Product type : Huawei S5720 Switch

Ports : 24 Ethernet 10/100/1000 ports

uplink ports : 4 x 10 Gig SFP+

Forwarding Performance : 126Mpps

Switching Capacity : 336 Gbit/s

Contact Now

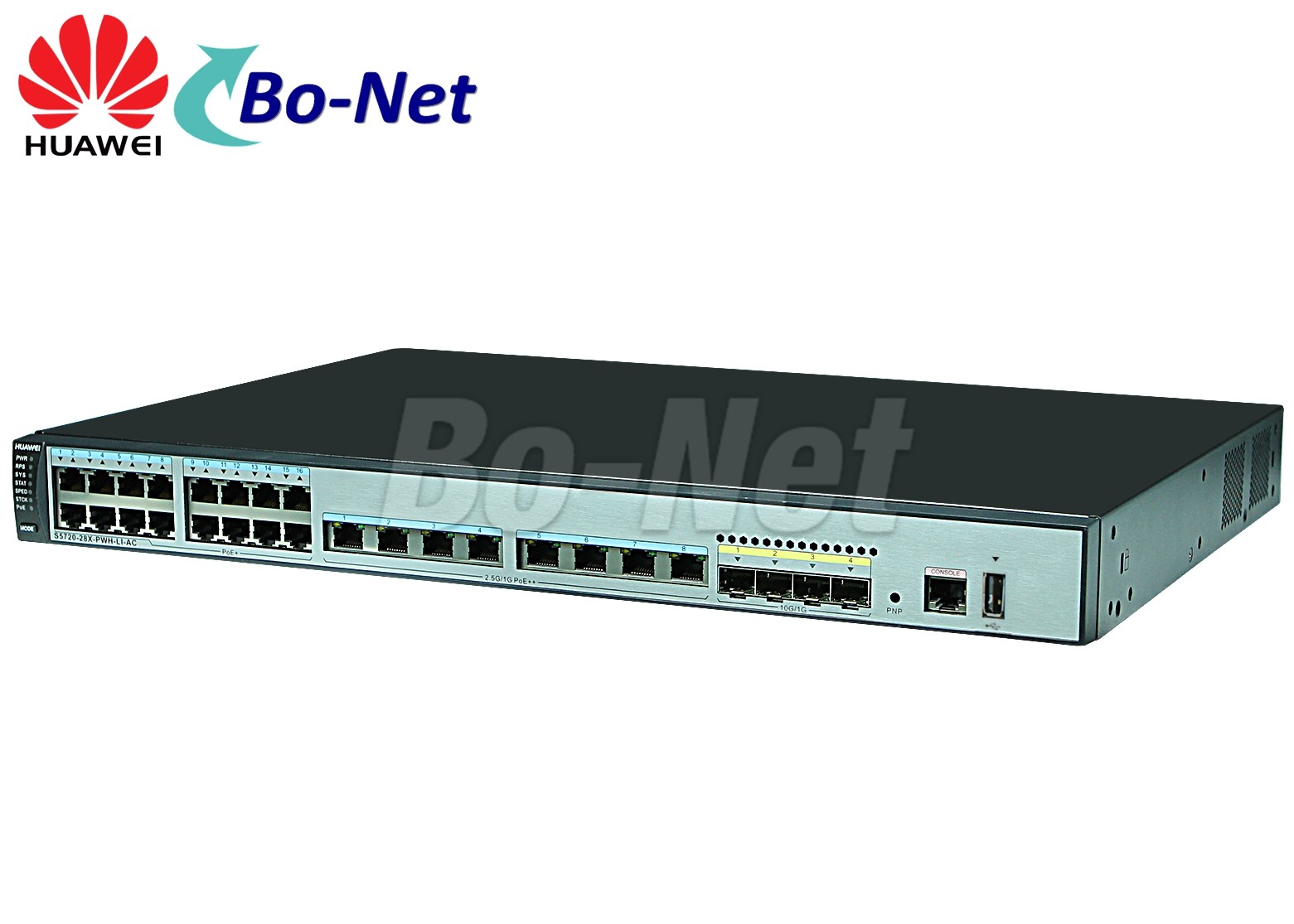

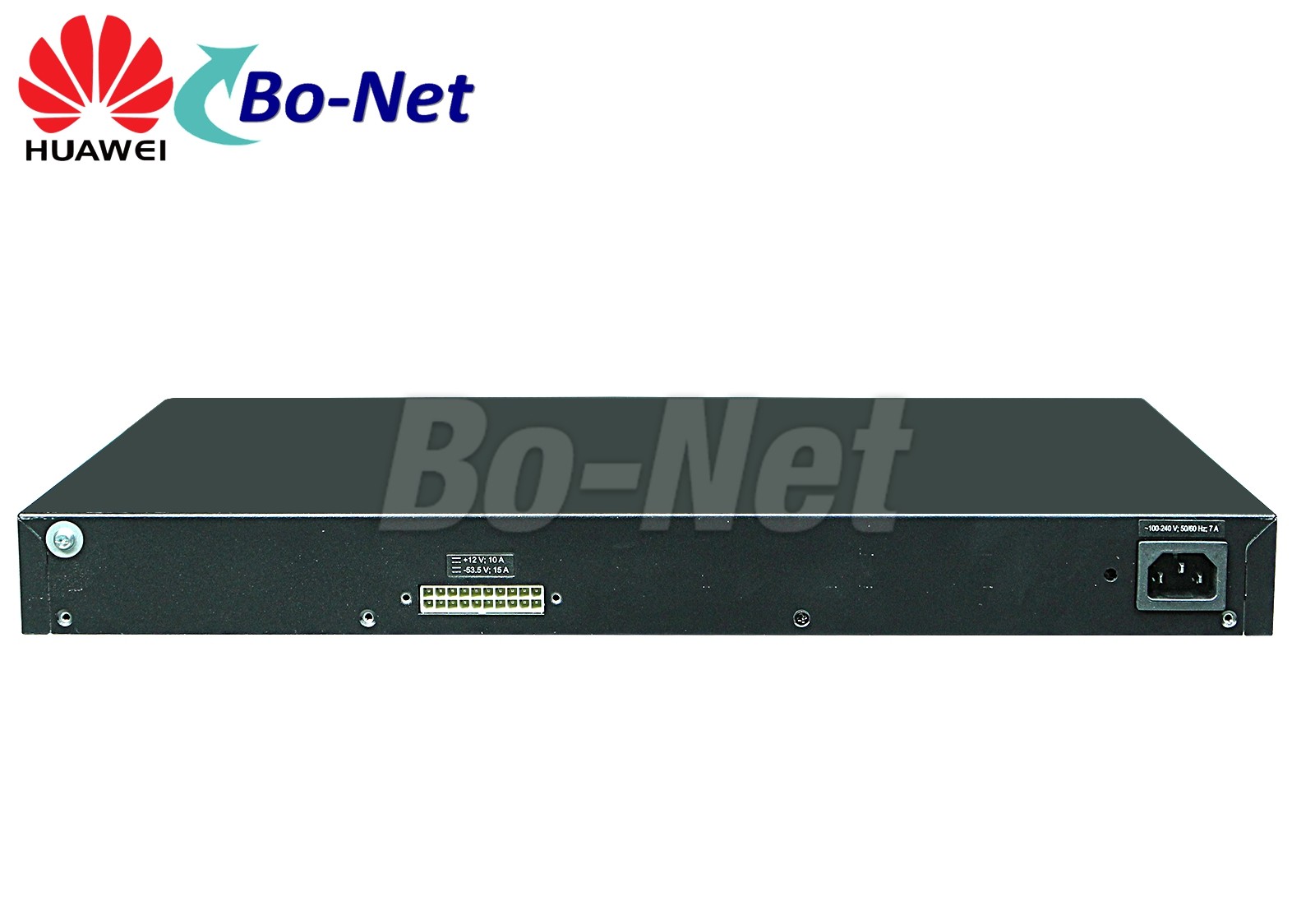

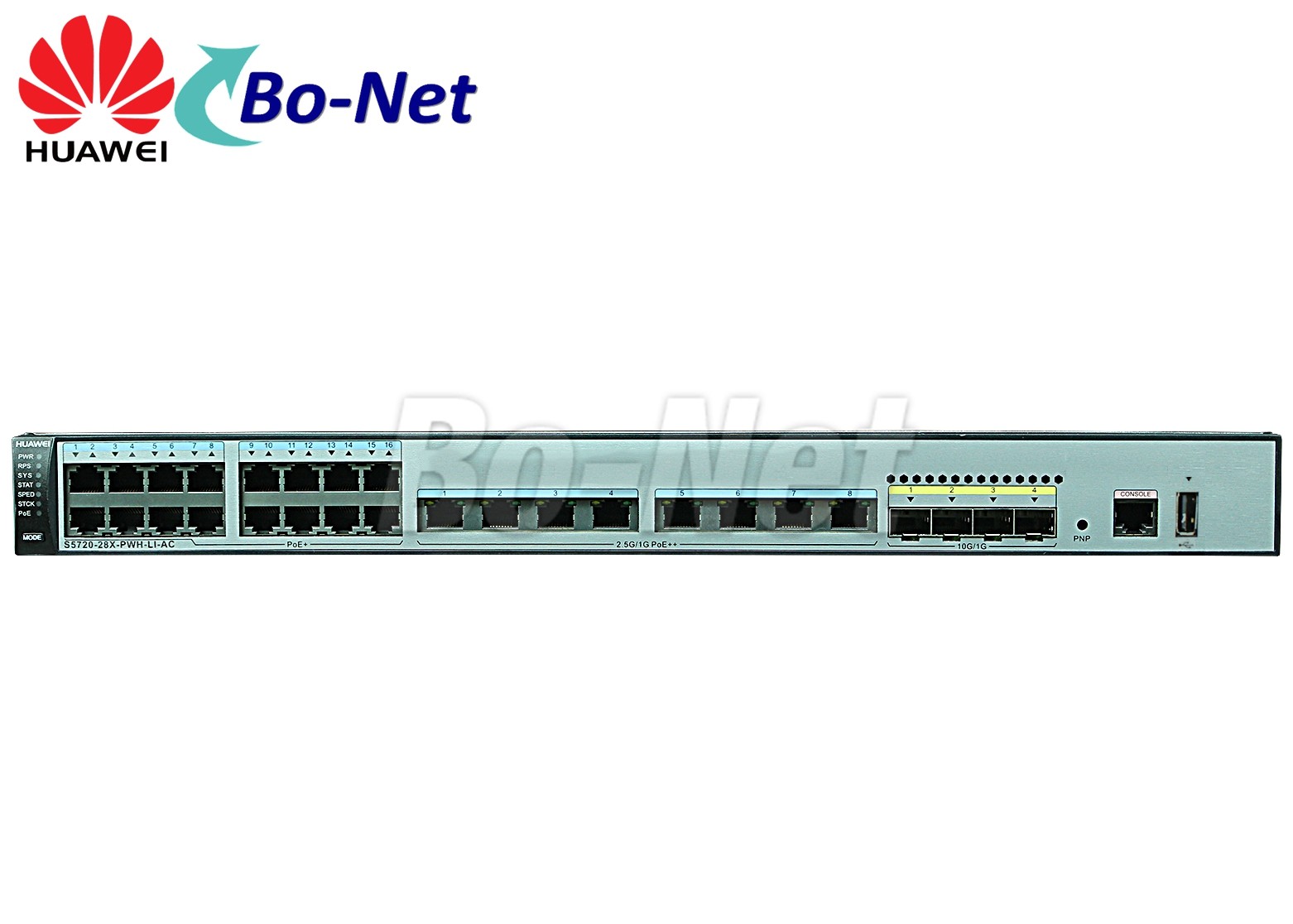

Huawei S5720-28X-PWH-LI-AC S5720 Series 24 Port SFP Gigabit Ethernet POE Switch

S5720-LI Series Switches

The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports.

Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.

Model	S5720-12TP-LI-AC S5720-12TP-PWR-LI-AC	S5720-16X-PWH-LI-AC S5720-28X-PWH-LI-AC	S5720-28P-LI-AC S5720-28P-PWR-LI-AC S5720-28TP-LI-AC S5720-28TP-PWR-LI-AC S5720-28TP-PWR-LI-ACL
Switching Capacity	336 Gbit/s	336 Gbit/s	336 Gbit/s
Forwarding Performance	22.5 Mpps	16x: 51 Mpps 28x: 126 Mpps	P series: 51 Mpps/108 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. TP series: 46.5 Mpps
Fixed Ports	8 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose	16x model: 12 x Ethernet 10/100/1,000 Base-T ports, 2 x Ethernet 10/100/1,000 Base-T ports, and 2 x 10 Gig SFP+ ports 28x model: 16 x Ethernet 10/100/1,000 Base-T ports, 8 x Ethernet 100/1,000/2,500 Base-T ports, and 4 x 10 Gig SFP+ ports	P series: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports TP series: 24 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP ports
MAC Address Table	16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4,094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLANBasic QinQ and selective QinQ
IP Routing	Static routing, RIP, RIPng, OSPF, and OSPFv3
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

126Mpps SFP Gigabit Ethernet POE Switch S5720-28X-PWH-LI-AC
